glbarcode::Barcode1dBase Class Reference

#include </home/evins/glbarcode/glbarcode/Barcode1dBase.hpp>

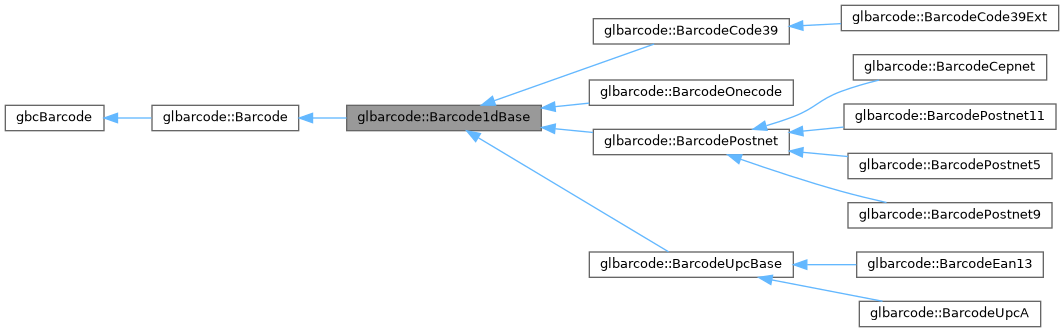

Inheritance diagram for glbarcode::Barcode1dBase:

Collaboration diagram for glbarcode::Barcode1dBase:

Public Member Functions
	~Barcode1dBase () override
Barcode &	build (const std::string &data, double w=0, double h=0) override
Public Member Functions inherited from glbarcode::Barcode
virtual	~Barcode ()
	Barcode (const Barcode &)=delete
void	operator= (const Barcode &)=delete
Barcode &	setShowText (bool value)
bool	showText () const
Barcode &	setChecksum (bool value)
bool	checksum () const
void	render (Renderer &renderer)
bool	isEmpty () const
bool	isDataValid () const
double	width () const
double	height () const

Protected Member Functions
	Barcode1dBase ()
virtual bool	validate (const std::string &rawData)=0
virtual std::string	preprocess (const std::string &rawData)
virtual std::string	encode (const std::string &cookedData)=0
virtual std::string	prepareText (const std::string &rawData)
virtual void	vectorize (const std::string &encodedData, const std::string &displayText, const std::string &cookedData, double &w, double &h)=0
Protected Member Functions inherited from glbarcode::Barcode
	Barcode ()
void	clear ()
void	addLine (double x, double y, double w, double h)
void	addBox (double x, double y, double w, double h)
void	addText (double x, double y, double size, const std::string &text, HAlign halign=H_ALIGN_CENTER)
void	addRing (double x, double y, double r, double w)
void	addHexagon (double x, double y, double h)
void	setIsEmpty (bool value)
void	setIsDataValid (bool value)
void	setWidth (double w)
void	setHeight (double h)

Detailed Description

The Barcode1dBase class is the base class for all 1D barcode implementations. This class provides a common framework for the implementation of 1D barcodes. Creating 1D barcode types (or symbologies) would be typically accomplished by implementing this class rather than directly implementing the Barcode class.

Constructor & Destructor Documentation

Barcode1dBase()

glbarcode::Barcode1dBase::Barcode1dBase ( )

protected

Default constructor.

~Barcode1dBase()

glbarcode::Barcode1dBase::~Barcode1dBase ( )

override

Destructor.

Member Function Documentation

build()

Barcode & glbarcode::Barcode1dBase::build ( const std::string &  data, double  w = 0, double  h = 0  )

overridevirtual

Build 1D barcode from data.

Implements glbarcode::Barcode::build(). Calls the validate(), preprocess(), encode(), prepareText(), and vectorize() virtual methods, as shown:

Parameters

[in]	data	Data to encode in barcode
[in]	w	Requested width of barcode (0 = auto size)
[in]	h	Requested height of barcode (0 = auto size)

Returns

A reference to this Barcode object for chaining methods

Implements glbarcode::Barcode.

encode()

virtual std::string glbarcode::Barcode1dBase::encode ( const std::string &  cookedData )

protectedpure virtual

Data encoder.

Required virtual method to encode data such that it can be later vectorized. The encoded data is usually a list of characters that represent an atomic barcode element (e.g. 'w' = a wide line & 'n' = a narrow line).

Parameters

[in]

cookedData

Data to encode

Returns

Encoded data

prepareText()

virtual std::string glbarcode::Barcode1dBase::prepareText ( const std::string &  rawData )

protectedvirtual

Prepare text.

Optional virtual method to prepare text to be displayed as part of barcode.

Parameters

[in]

rawData

Data to prepare

Returns

text in display form

preprocess()

virtual std::string glbarcode::Barcode1dBase::preprocess ( const std::string &  rawData )

protectedvirtual

Data preprocessor.

Optional virtual method to perform any transformation of the data needed before encoding. (E.g. encoding an extended alphabet into a simpler one).

Parameters

[in]

rawData

Data to preprocess

Returns

Preprocessed data

validate()

virtual bool glbarcode::Barcode1dBase::validate ( const std::string &  rawData )

protectedpure virtual

Data validator.

Required virtual method to test if data is valid for encoding with barcode type.

Parameters

[in]

rawData

Data to validate

Returns

True if data is valid data for barcode type

False if data is not valid data for barcode type

vectorize()

virtual void glbarcode::Barcode1dBase::vectorize ( const std::string &  encodedData, const std::string &  displayText, const std::string &  cookedData, double &  w, double &  h  )

protectedpure virtual

Vectorize encoded data.

Required virtual method to convert encoded data into a list of drawing primitives which can later be rendered.

Parameters

[in]	encodedData	Data to vectorize
[in]	displayText	Text to display
[in]	cookedData	Original data prior to encoding (may be needed for sizing)
[in,out]	w	Requested width of barcode (0 = auto size), vectorize will overwrite with actual width
[in,out]	h	Requested height of barcode (0 = auto size), vectorize will overwrite with actual width

---

The documentation for this class was generated from the following file:

• /home/evins/glbarcode/glbarcode/Barcode1dBase.hpp
