#include </home/evins/glbarcode/glbarcode/Barcode.hpp>

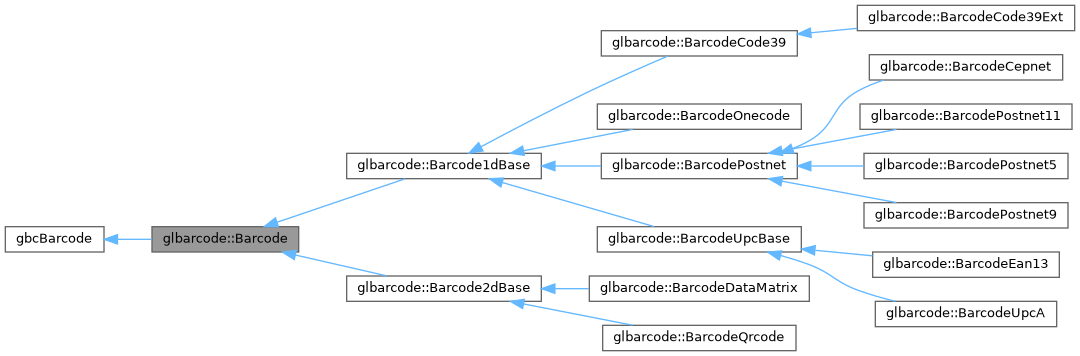

Inheritance diagram for glbarcode::Barcode:

[legend]

Collaboration diagram for glbarcode::Barcode:

Public Member Functions
virtual	~Barcode ()

	Barcode (const Barcode &)=delete

void	operator= (const Barcode &)=delete

Barcode &	setShowText (bool value)

bool	showText () const

Barcode &	setChecksum (bool value)

bool	checksum () const

virtual Barcode &	build (const std::string &data, double w=0, double h=0)=0

void	render (Renderer &renderer)

bool	isEmpty () const

bool	isDataValid () const

double	width () const

double	height () const

Protected Member Functions
	Barcode ()

void	clear ()

void	addLine (double x, double y, double w, double h)

void	addBox (double x, double y, double w, double h)

void	addText (double x, double y, double size, const std::string &text, HAlign halign=H_ALIGN_CENTER)

void	addRing (double x, double y, double r, double w)

void	addHexagon (double x, double y, double h)

void	setIsEmpty (bool value)

void	setIsDataValid (bool value)

void	setWidth (double w)

void	setHeight (double h)

Detailed Description

The Barcode class is the base class for all barcode implementations. This class provides the public interfaces and basic infrastructure for all barcode implementations. Implementations would not typically directly implement this class, but instead would implement either Barcode1dBase (for 1D symbologies) or Barcode2dBase (for 2D symbologies).

See Barcode1dBase or Barcode2dBase.

Constructor & Destructor Documentation

◆ Barcode() [1/2]

glbarcode::Barcode::Barcode ( )

protected

Default constructor.

◆ ~Barcode()

virtual glbarcode::Barcode::~Barcode ( )

virtual

Destructor.

◆ Barcode() [2/2]

glbarcode::Barcode::Barcode ( const Barcode & )

delete

Member Function Documentation

◆ addBox()

void glbarcode::Barcode::addBox	(	double	x,
		double	y,
		double	w,
		double	h
	)

protected

Add box drawing primitive

To be used by build() implementations during vectorization.

Box primitive properties

Parameters

[in]	x	X coordinate of box's origin (points)
[in]	y	Y coordinate of box's origin (points)
[in]	w	Width of box (points)
[in]	h	Height of box (points)

◆ addHexagon()

void glbarcode::Barcode::addHexagon	(	double	x,
		double	y,
		double	h
	)

protected

Add hexagon drawing primitive

To be used by build() implementations during vectorization.

Hexagon primitive properties

Parameters

[in]	x	X coordinate of hexagon's origin (points)
[in]	y	Y coordinate of hexagon's origin (points)
[in]	h	Height of hexagon (points)

◆ addLine()

void glbarcode::Barcode::addLine	(	double	x,
		double	y,
		double	w,
		double	h
	)

protected

Add line drawing primitive

To be used by build() implementations during vectorization.

Line primitive properties

Parameters

[in]	x	X coordinate of line's origin (points)
[in]	y	Y coordinate of line's origin (points)
[in]	w	Bar width (points)
[in]	h	Bar height (points)

◆ addRing()

void glbarcode::Barcode::addRing	(	double	x,
		double	y,
		double	r,
		double	w
	)

protected

Add ring drawing primitive

To be used by build() implementations during vectorization.

Ring primitive properties

Parameters

[in]	x	X coordinate of ring's origin (points)
[in]	y	Y coordinate of ring's origin (points)
[in]	r	Radius of ring (points)
[in]	w	Line width of ring (points)

◆ addText()

void glbarcode::Barcode::addText	(	double	x,
		double	y,
		double	size,
		const std::string &	text,
		HAlign	halign = `H_ALIGN_CENTER`
	)

protected

Add text drawing primitive

To be used by build() implementations during vectorization.

Text primitive properties

Parameters

[in]	x	X coordinate of text's origin (points)
[in]	y	Y coordinate of text's origin (points)
[in]	size	Font size of text (points)
[in]	text	Text
[in]	halign	Horizontal text alignment

◆ build()

virtual Barcode & glbarcode::Barcode::build	(	const std::string &	data,
		double	w = `0`,
		double	h = `0`
	)

pure virtual

Build barcode from data.

Parameters

[in]	data	Data to encode in barcode
[in]	w	Requested width of barcode (0 = auto size)
[in]	h	Requested height of barcode (0 = auto size)

Returns: A reference to this Barcode object for chaining methods

Implemented in glbarcode::Barcode1dBase, and glbarcode::Barcode2dBase.

◆ checksum()

bool glbarcode::Barcode::checksum ( ) const

Get accessor for "checksum" property.

Returns: Value of boolean "checksum" property

See also: setChecksum()

◆ clear()

void glbarcode::Barcode::clear ( )

protected

Clear drawing primitives.

◆ height()

double glbarcode::Barcode::height ( ) const

Get actual height of barcode (may differ from requested height).

Returns: Actual height of barcode (points)

See also: setHeight()

◆ isDataValid()

bool glbarcode::Barcode::isDataValid ( ) const

Is barcode data valid?

Returns: True if barcode data is valid; False if barcode data is not valid for implemented barcode type

See also: setIsDataValid()

◆ isEmpty()

bool glbarcode::Barcode::isEmpty ( ) const

Is barcode data empty?

Returns: True if barcode data is empty; False if barcode data is not empty

See also: setIsEmpty()

◆ operator=()

void glbarcode::Barcode::operator= ( const Barcode & )

delete

◆ render()

void glbarcode::Barcode::render ( Renderer & renderer )

Render barcode using given Renderer object.

Parameters

[in] renderer A Renderer object

◆ setChecksum()

Barcode & glbarcode::Barcode::setChecksum ( bool value )

Set accessor for "checksum" property.

Parameters

[in] value Boolean value

Returns: A reference to this Barcode object for property chaining

See also: checksum()

◆ setHeight()

void glbarcode::Barcode::setHeight ( double h )

protected

Set new height of barcode.

To be used by build() implementations to override requested height of barcode.

Parameters

[in] h Actual height of barcode (points)

See also: height()

◆ setIsDataValid()

void glbarcode::Barcode::setIsDataValid ( bool value )

protected

Set is data valid property.

To be used by build() implementations to indicate if input data is valid or not.

Parameters

[in] value Boolean value of flag

See also: isDataValid()

◆ setIsEmpty()

void glbarcode::Barcode::setIsEmpty ( bool value )

protected

Set is empty property.

To be used by build() implementations to indicate if input data is empty.

Parameters

[in] value Boolean value of flag

See also: isEmpty()

◆ setShowText()

Barcode & glbarcode::Barcode::setShowText ( bool value )

Set accessor for "showText" property.

Parameters

[in] value Boolean value

Returns: A reference to this Barcode object for property chaining

See also: showText()

◆ setWidth()

void glbarcode::Barcode::setWidth ( double w )

protected

Set new width of barcode.

To be used by build() implementations to override requested width of barcode.

Parameters

[in] w Actual width of barcode (points)

See also: width()

◆ showText()

bool glbarcode::Barcode::showText ( ) const

Get accessor for "showText" property.

Returns: Value of boolean "showText" property

See also: setShowText()

◆ width()

double glbarcode::Barcode::width ( ) const

Get actual width of barcode (may differ from requested width).

Returns: Actual width of barcode (points)

See also: setWidth()

The documentation for this class was generated from the following file:

/home/evins/glbarcode/glbarcode/Barcode.hpp
