glbarcode::Barcode2dBase Class Reference

#include </home/evins/glbarcode/glbarcode/Barcode2dBase.hpp>

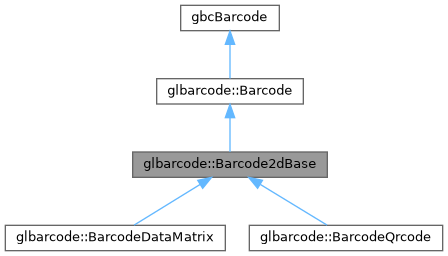

Inheritance diagram for glbarcode::Barcode2dBase:

Collaboration diagram for glbarcode::Barcode2dBase:

Public Member Functions
	~Barcode2dBase () override
Barcode &	build (const std::string &data, double w=0, double h=0) override
Public Member Functions inherited from glbarcode::Barcode
virtual	~Barcode ()
	Barcode (const Barcode &)=delete
void	operator= (const Barcode &)=delete
Barcode &	setShowText (bool value)
bool	showText () const
Barcode &	setChecksum (bool value)
bool	checksum () const
void	render (Renderer &renderer)
bool	isEmpty () const
bool	isDataValid () const
double	width () const
double	height () const

Protected Member Functions
	Barcode2dBase ()
virtual bool	validate (const std::string &rawData)=0
virtual std::string	preprocess (const std::string &rawData)
virtual bool	encode (const std::string &cookedData, Matrix< bool > &encodedData)=0
virtual void	vectorize (const Matrix< bool > &encodedData, double &w, double &h)
Protected Member Functions inherited from glbarcode::Barcode
	Barcode ()
void	clear ()
void	addLine (double x, double y, double w, double h)
void	addBox (double x, double y, double w, double h)
void	addText (double x, double y, double size, const std::string &text, HAlign halign=H_ALIGN_CENTER)
void	addRing (double x, double y, double r, double w)
void	addHexagon (double x, double y, double h)
void	setIsEmpty (bool value)
void	setIsDataValid (bool value)
void	setWidth (double w)
void	setHeight (double h)

Detailed Description

The Barcode2dBase class is the base class for all 2D barcode implementations. This class provides a common framework for the implementation of 2D barcodes. Creating 2D barcode types (or symbologies) would be typically accomplished by implementing this class rather than directly implementing the Barcode class.

Constructor & Destructor Documentation

Barcode2dBase()

glbarcode::Barcode2dBase::Barcode2dBase ( )

protected

Default constructor.

~Barcode2dBase()

glbarcode::Barcode2dBase::~Barcode2dBase ( )

override

Destructor.

Member Function Documentation

build()

Barcode & glbarcode::Barcode2dBase::build ( const std::string &  data, double  w = 0, double  h = 0  )

overridevirtual

Build 2D barcode from data.

Implements glbarcode::Barcode::build(). Calls the validate(), preprocess(), encode(), and vectorize() virtual methods, as shown:

Parameters

[in]	data	Data to encode in barcode
[in]	w	Requested width of barcode (0 = auto size)
[in]	h	Requested height of barcode (0 = auto size)

Returns

A reference to this Barcode object for chaining methods

Implements glbarcode::Barcode.

encode()

virtual bool glbarcode::Barcode2dBase::encode ( const std::string &  cookedData, Matrix< bool > &  encodedData  )

protectedpure virtual

Encode barcode data

Required virtual method to encode data such that it can be later vectorized.

Parameters

[in]	cookedData	Data to encode
[out]	encodedData	Encoded data in the form of a matrix

Returns

True if data was encoded successfully

False if data could not be encoded (condition not discoverable by validate())

preprocess()

virtual std::string glbarcode::Barcode2dBase::preprocess ( const std::string &  rawData )

protectedvirtual

Preprocess barcode data.

Optional virtual method to perform any transformation of the data needed before encoding. (E.g. encoding an extended alphabet into a simpler one).

Parameters

[in]

rawData

Data to preprocess

Returns

Preprocessed data

validate()

virtual bool glbarcode::Barcode2dBase::validate ( const std::string &  rawData )

protectedpure virtual

Validate barcode data.

Required virtual method to test if data is valid for encoding with barcode type.

Parameters

[in]

rawData

Data to validate

Returns

True if data is valid data for barcode type

False if data is not valid data for barcode type

vectorize()

virtual void glbarcode::Barcode2dBase::vectorize ( const Matrix< bool > &  encodedData, double &  w, double &  h  )

protectedvirtual

Vectorize encoded data

Optional virtual method to convert encoded data into a list of drawing primitives which can later be rendered.

Parameters

[in]	encodedData	Data to vectorize
[in,out]	w	Requested width of barcode (0 = auto size), vectorize will overwrite with actual width
[in,out]	h	Requested height of barcode (0 = auto size), vectorize will overwrite with actual width

---
