#include </home/evins/glbarcode/glbarcode/BarcodePostnet.hpp>

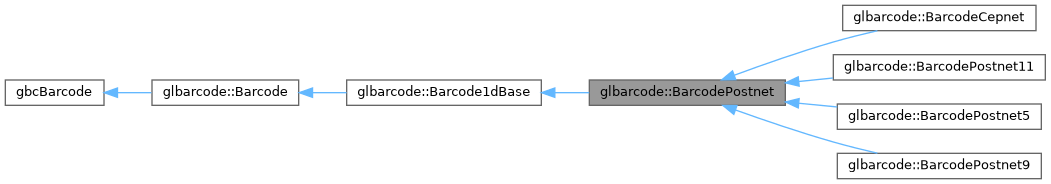

Inheritance diagram for glbarcode::BarcodePostnet:

[legend]

Collaboration diagram for glbarcode::BarcodePostnet:

[legend]

Static Public Member Functions
static Barcode *	create ()

Protected Member Functions
virtual bool	validateDigits (int nDigits)

Protected Member Functions inherited from glbarcode::Barcode1dBase
	Barcode1dBase ()

virtual std::string	preprocess (const std::string &rawData)

virtual std::string	prepareText (const std::string &rawData)

Protected Member Functions inherited from glbarcode::Barcode
	Barcode ()

void	clear ()

void	addLine (double x, double y, double w, double h)

void	addBox (double x, double y, double w, double h)

void	addText (double x, double y, double size, const std::string &text, HAlign halign=H_ALIGN_CENTER)

void	addRing (double x, double y, double r, double w)

void	addHexagon (double x, double y, double h)

void	setIsEmpty (bool value)

void	setIsDataValid (bool value)

void	setWidth (double w)

void	setHeight (double h)

Additional Inherited Members
Public Member Functions inherited from glbarcode::Barcode1dBase
	~Barcode1dBase () override

Barcode &	build (const std::string &data, double w=0, double h=0) override

Public Member Functions inherited from glbarcode::Barcode
virtual	~Barcode ()

	Barcode (const Barcode &)=delete

void	operator= (const Barcode &)=delete

Barcode &	setShowText (bool value)

bool	showText () const

Barcode &	setChecksum (bool value)

bool	checksum () const

void	render (Renderer &renderer)

bool	isEmpty () const

bool	isDataValid () const

double	width () const

double	height () const

Detailed Description

POSTNET barcode (All USPS sizes: ZIP, ZIP+4, ZIP+4+DC).

Sample USPS POSTNET Barcode

Input Data Format

The POSTNET specification defines 10 characters, consisting solely of decimal digits (0-9). The BarcodePostnet validator and encoder will ignore spaces and dashes (-). The validator will only accept input data with 5 digits (ZIP), 9 digits (ZIP+4) or 11 digits (ZIP+4+DC).

Checksum Property

The checksum property is ignored. A mandatory check digit will always be automatically generated and appended to the input data prior to encoding.

Show Text Property

The Show Text property is ignored.

References

http://en.wikipedia.org/wiki/POSTNET

Member Function Documentation

◆ create()

static Barcode * glbarcode::BarcodePostnet::create ( )

static

Static Postnet barcode creation method

Used by glbarcode::BarcodeFactory

◆ validateDigits()

virtual bool glbarcode::BarcodePostnet::validateDigits ( int nDigits )

protectedvirtual

Validate number of digits

The documentation for this class was generated from the following file:

/home/evins/glbarcode/glbarcode/BarcodePostnet.hpp
