#include </home/evins/glbarcode/glbarcode/BarcodeCode39.hpp>

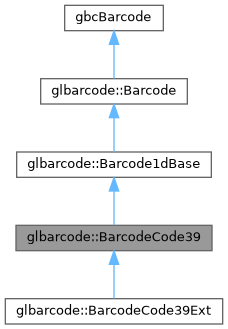

Inheritance diagram for glbarcode::BarcodeCode39:

[legend]

Collaboration diagram for glbarcode::BarcodeCode39:

[legend]

Static Public Member Functions
static Barcode *	create ()

Additional Inherited Members
Public Member Functions inherited from glbarcode::Barcode1dBase
	~Barcode1dBase () override

Barcode &	build (const std::string &data, double w=0, double h=0) override

Public Member Functions inherited from glbarcode::Barcode
virtual	~Barcode ()

	Barcode (const Barcode &)=delete

void	operator= (const Barcode &)=delete

Barcode &	setShowText (bool value)

bool	showText () const

Barcode &	setChecksum (bool value)

bool	checksum () const

void	render (Renderer &renderer)

bool	isEmpty () const

bool	isDataValid () const

double	width () const

double	height () const

Protected Member Functions inherited from glbarcode::Barcode1dBase
	Barcode1dBase ()

virtual std::string	preprocess (const std::string &rawData)

Protected Member Functions inherited from glbarcode::Barcode
	Barcode ()

void	clear ()

void	addLine (double x, double y, double w, double h)

void	addBox (double x, double y, double w, double h)

void	addText (double x, double y, double size, const std::string &text, HAlign halign=H_ALIGN_CENTER)

void	addRing (double x, double y, double r, double w)

void	addHexagon (double x, double y, double h)

void	setIsEmpty (bool value)

void	setIsDataValid (bool value)

void	setWidth (double w)

void	setHeight (double h)

Detailed Description

Code 39 1D barcode symbology.

Sample Code 39 Barcode

Input Data Format

The Code 39 specification defines 43 characters, consisting of upper case letters (A-Z), decimal digits (0-9), space, and several special characters (-.$/+%). The BarcodeCode39 validator will also accept lower case letters (a-z). The encoder will automatically upshift any lower case letters prior to encoding.

For full ASCII support see BarcodeCode39Ext.

Checksum Property

If the checksum property is true, a modulo 43 check digit will be automatically generated and appended to input data before encoding. By default, the check digit will not be generated.

See setChecksum().

Show Text Property

If the Show Text property is true, the input data will be printed below the barcode. By default, the data will not be printed.

See setShowText().

References

http://en.wikipedia.org/wiki/Code_39

Member Function Documentation

◆ create()

static Barcode * glbarcode::BarcodeCode39::create ( )

static

Static Code39 barcode creation method

Used by glbarcode::BarcodeFactory

The documentation for this class was generated from the following file:

/home/evins/glbarcode/glbarcode/BarcodeCode39.hpp
