#include </home/evins/glbarcode/glbarcode/BarcodeCode39Ext.hpp>

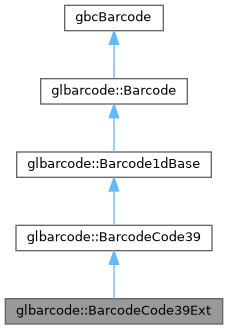

Inheritance diagram for glbarcode::BarcodeCode39Ext:

[legend]

Collaboration diagram for glbarcode::BarcodeCode39Ext:

[legend]

Static Public Member Functions
static Barcode *	create ()

Static Public Member Functions inherited from glbarcode::BarcodeCode39
static Barcode *	create ()

Additional Inherited Members
Public Member Functions inherited from glbarcode::Barcode1dBase
	~Barcode1dBase () override

Barcode &	build (const std::string &data, double w=0, double h=0) override

Public Member Functions inherited from glbarcode::Barcode
virtual	~Barcode ()

	Barcode (const Barcode &)=delete

void	operator= (const Barcode &)=delete

Barcode &	setShowText (bool value)

bool	showText () const

Barcode &	setChecksum (bool value)

bool	checksum () const

void	render (Renderer &renderer)

bool	isEmpty () const

bool	isDataValid () const

double	width () const

double	height () const

Protected Member Functions inherited from glbarcode::Barcode1dBase
	Barcode1dBase ()

Protected Member Functions inherited from glbarcode::Barcode
	Barcode ()

void	clear ()

void	addLine (double x, double y, double w, double h)

void	addBox (double x, double y, double w, double h)

void	addText (double x, double y, double size, const std::string &text, HAlign halign=H_ALIGN_CENTER)

void	addRing (double x, double y, double r, double w)

void	addHexagon (double x, double y, double h)

void	setIsEmpty (bool value)

void	setIsDataValid (bool value)

void	setWidth (double w)

void	setHeight (double h)

Detailed Description

Extended Code 39 1D barcode symbology.

Sample Extended Code 39 Barcode

Input Data Format

The extended Code 39 barcode type supports the full 7-bit ASCII character set (0-127). This support is accomplished by encoding lower case letters, constrol characters, and special characters other than "-" and "." as two character sequences as illustrated in the following table:

Dec	Char	Enc	Dec	Char	Enc	Dec	Char	Enc	Dec	Char	Enc
0	NUL	%U	32	" "	" "	64	@	%V	96	‘	%W
1	SOH	$A	33	!	/A	65	A	A	97	a	+A
2	STX	$B	34	"	/B	66	B	B	98	b	+B
3	ETX	$C	35	#	/C	67	C	C	99	c	+C
4	EOT	$D	36	$	/D	68	D	D	100	d	+D
5	ENQ	$E	37	%	/E	69	E	E	101	e	+E
6	ACK	$F	38	&	/F	70	F	F	102	f	+F
7	BEL	$G	39	’	/G	71	G	G	103	g	+G
8	BS	$H	40	(	/H	72	H	H	104	h	+H
9	HT	$I	41	)	/I	73	I	I	105	i	+I
10	LF	$J	42	*	/J	74	J	J	106	j	+J
11	VT	$K	43	+	/K	75	K	K	107	k	+K
12	FF	$L	44	,	/L	76	L	L	108	l	+L
13	CR	$M	45	-	-	77	M	M	109	m	+M
14	SO	$N	46	.	.	78	N	N	110	n	+N
15	SI	$O	47	/	/O	79	O	O	111	o	+O
16	DLE	$P	48	0	0	80	P	P	112	p	+P
17	DC1	$Q	49	1	1	81	Q	Q	113	q	+Q
18	DC2	$R	50	2	2	82	R	R	114	r	+R
19	DC3	$S	51	3	3	83	S	S	115	s	+S
20	DC4	$T	52	4	4	84	T	T	116	t	+T
21	NAK	$U	53	5	5	85	U	U	117	u	+U
22	SYN	$V	54	6	6	86	V	V	118	v	+V
23	ETB	$W	55	7	7	87	W	W	119	w	+W
24	CAN	$X	56	8	8	88	X	X	120	x	+X
25	EM	$Y	57	9	9	89	Y	Y	121	y	+Y
26	SUB	$Z	58	:	/Z	90	Z	Z	122	z	+Z
27	ESC	%A	59	;	%F	91	[	%K	123	{	%P
28	FS	%B	60	<	%G	92	\	%L	124	\|	%Q
29	GS	%C	61	=	%H	93	]	%M	125	}	%R
30	RS	%D	62	>	%I	94	]	%N	126	~	%S
31	US	%E	63	?	%J	95	_	%O	127	DEL	%T

This pre-encoded data is now encoded using the standard Code 39 symbology.

Checksum Property

If the checksum property is true, a modulo 43 check digit will be automatically generated and appended to the 1st pass encoded data prior to the 2nd pass Code 39 encoding. By default, the check digit will not be generated.

See setChecksum().

Show Text Property

If the Show Text property is true, the original ASCII input data will be printed below the barcode. By default, the data will not be printed.

See setShowText().

References

http://en.wikipedia.org/wiki/Code_39

Member Function Documentation

◆ create()

static Barcode * glbarcode::BarcodeCode39Ext::create ( )

static

Static Extended Code39 barcode creation method

Used by glbarcode::BarcodeFactory

The documentation for this class was generated from the following file:

/home/evins/glbarcode/glbarcode/BarcodeCode39Ext.hpp
